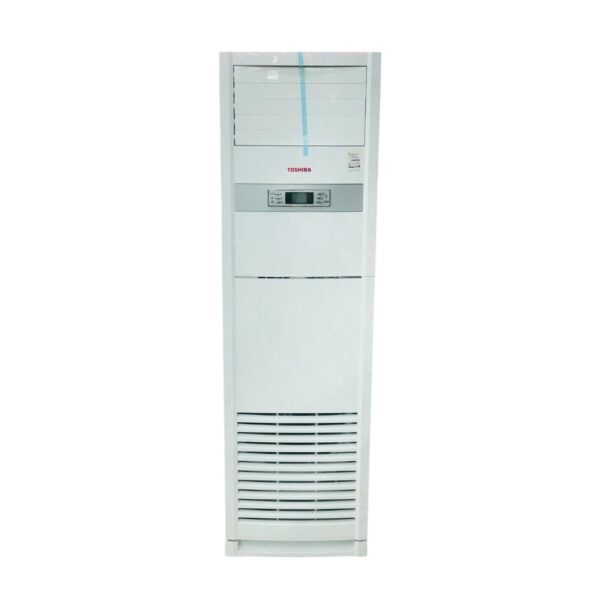

Toshiba 2.0 Ton Inverter Cabinet AC MF-24HR.ETA offers a powerful 24000 BTU/h cooling and heating capacity, with R410A refrigerant for optimal performance. Its energy-efficient design runs on a 220-240V power source, with cooling input of 2260W and heating input of 1900W. The unit’s robust outdoor resistance class is IPX4, ensuring durability against the elements.
Toshiba 2.0 Ton Inverter Cabinet AC 24HR ETA Features
- MODEL: MF-24HR.ETA
- COOLING CAPACITY: 24000Btu/h
- HEATING CAPACITY: 24000Btu/h
- REFRIGERANT: R410A / 1.85kg
- MAXIMUM ALLOWABLE PRESSURE: 5.4MPa
- EXCESSIVE OPERATING PRESSURE: DISCHARGE 4.2MPa
- SUCTION 1.5MPa
- POWER SOURCE: 220-240V~ 50Hz, 1Ph
- COOLING CURRENT: 10.0A
- INPUT: 2260W
- HEATING CURRENT: 8.4A
- INPUT: 1900W
- RATED CURRENT: 20.0A
- RATED INPUT: 4600W
- OUTDOOR UNIT RESISTANCE CLASS: IPX4
High Cooling and Heating Capacity
The Toshiba MF-24HR.ETA offers an impressive 24000 BTU/h for both cooling and heating, making it an excellent choice for large rooms or spaces. This capability ensures a comfortable environment year-round, regardless of the weather.
Eco-Friendly Refrigerant
Equipped with R410A refrigerant (1.85kg), this air conditioner provides superior performance while being environmentally friendly. Additionally, R410A is known for its energy efficiency and lower environmental impact, offering better cooling while also reducing harmful emissions.
Pressure Handling & Safety
With a maximum allowable pressure of 5.4MPa and an excessive operating pressure of 4.2MPa on the discharge side and 1.5MPa on the suction side, this unit is engineered for safe and efficient operation under various conditions. Consequently, this ensures both durability and long-lasting reliability.
Power Source and Energy Efficiency
The Toshiba 2.0 Ton AC operates on a 220-240V~ 50Hz, 1Ph power supply. For cooling, it requires 10.0A and 2260W, while heating requires 8.4A and 1900W. Therefore, the rated current of 20.0A and rated input of 4600W ensure efficient performance, ultimately providing significant energy savings.
Durability with Outdoor Resistance Class
Built to withstand the elements, the outdoor unit of the Toshiba MF-24HR.ETA comes with an IPX4 resistance class, offering protection from splashing water. As a result, it is perfect for outdoor installation, ensuring long-term reliability even in harsh weather conditions.
Outdoor Unit Caution
1. Ensure to evacuate the air inside the indoor unit and pipes with vacuum pump. 2. Make sure the additional amount of refrigerant to be charged is based on the pipe size and length, please refer to the INSTALLATION INSTRUCTIONS for details.
3. Incorrect installation due to ignoring of the instruction will cause serious problem to the machine.
